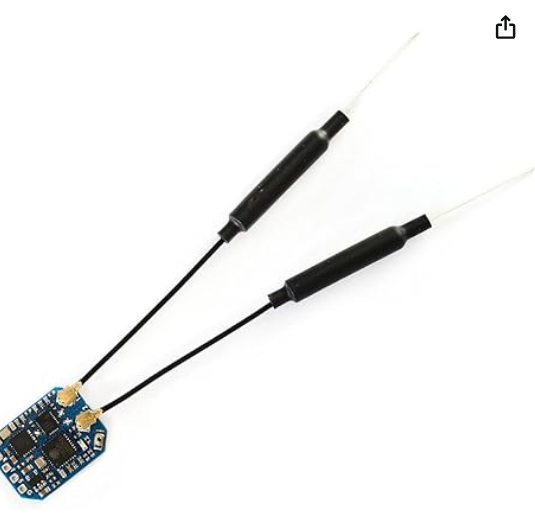

Matek ELRS-R24-D 2.4GHz Nano Receiver (ExpressLRS)

The Matek ELRS-R24-D is a compact, high-performance 2.4GHz ExpressLRS receiver built for micro and long-range FPV drones. Powered by the ESP8285 chip and SX1280 RF module, it offers fast link recovery, low latency, and excellent range in a lightweight form factor. Compatible with any ELRS 2.4GHz transmitter module, including DIY and cross-brand options.

• Frequency: 2.4GHz (2400–2480 MHz)

• Chipset: ESP8285 + SX1280

• Antenna: IPEX MHF1 connector

• Gain: SE2431L PA/LNA, RX Gain 12.5 dB

• Telemetry Power: Up to 23 dBm

• Size: 21 × 15 mm, ultra-lightweight

Ideal for freestyle, micro, and long-range FPV builds.
