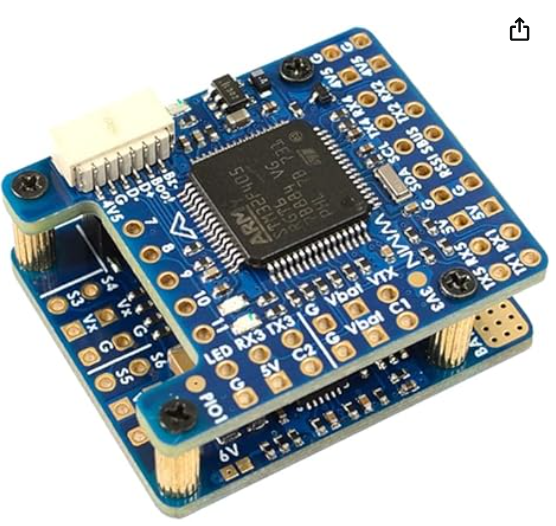

Matek F405-WMN Flight Controller (INAV-Compatible)

The Matek F405-WMN is a high-performance flight controller tailored for FPV fixed-wing aircraft, featuring the STM32F405 MCU, precision ICM42688-P gyro, and support for INAV 5.0+. Designed with 12 PWM outputs, dual camera switching, and a compact 22x22mm mount footprint, it's ideal for modern DIY RC builds.

• MCU: STM32F405 @ 168MHz, 1MB Flash

• Gyro/IMU: ICM42688-P

• Barometer: SPL06-001

• Blackbox: 16MB Flash

• Battery Input: 2–6S LiPo

• Inputs: 5× UARTs, I2C, 3× ADC (VBAT, Current, RSSI), SBUS inverter

• Outputs: 12× PWM, 1× SoftSerial TX

• Mounting: 22×22mm (Φ2mm), Size: 31×26×16.5mm

• USB: Type-C via USB/Beep Extender

Perfect for long-range, high-precision INAV or ArduPilot wing builds.
