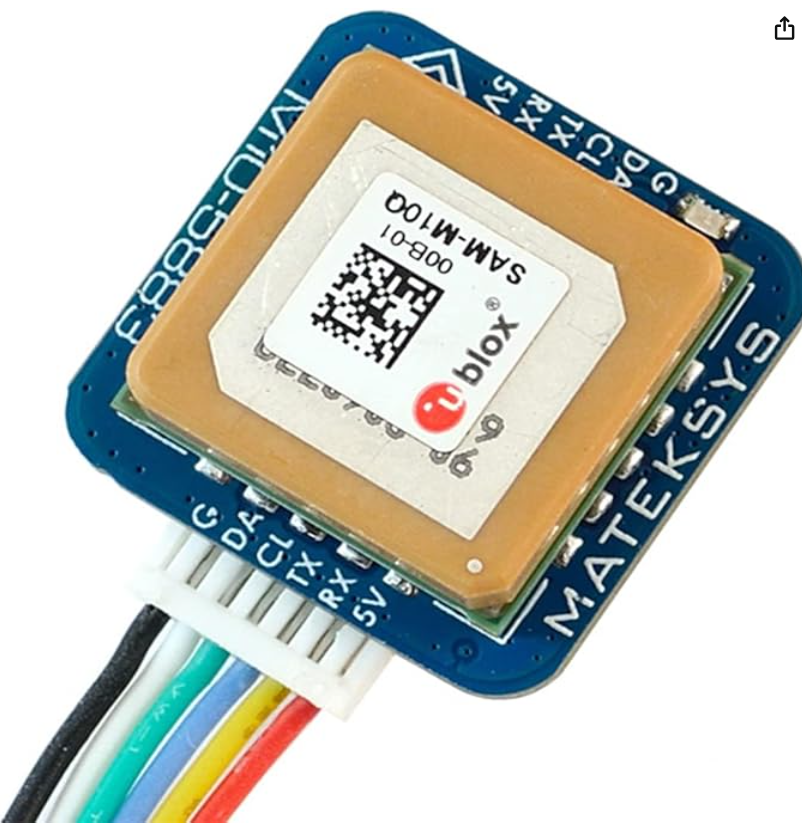

Matek M10Q-5883 GNSS & Compass Module

The M10Q-5883 combines a high-performance u-blox SAM-M10Q multi-constellation GNSS receiver (GPS, GLONASS, Galileo, BeiDou) with a QMC5883L compass in a compact 20×20mm module. Featuring a high-gain 15×15mm patch antenna and u-blox Super-S technology, it offers fast satellite acquisition, strong signal reliability, and high positional accuracy even in challenging environments. Compatible with INAV, Betaflight, and ArduPilot via UART (GPS) and I2C (compass), it's ideal for precision RC and UAV applications. Includes JST-GH-6P cable.

• GNSS: u-blox SAM-M10Q, concurrent 4-system reception

• Compass: QMC5883L (I2C)

• Voltage: 4–9V input

• Size: 20×20×12.4mm, 8g

• PPS LED: Blinks on 3D GPS fix

• Includes: 20cm JST-GH-6P cable
